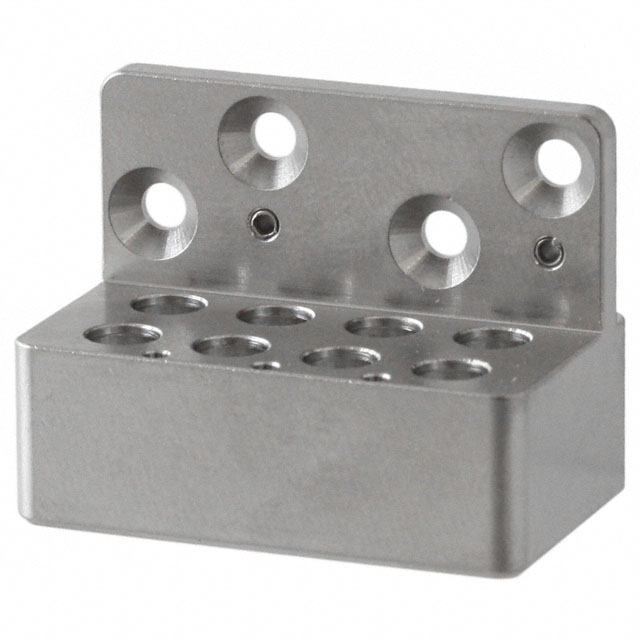

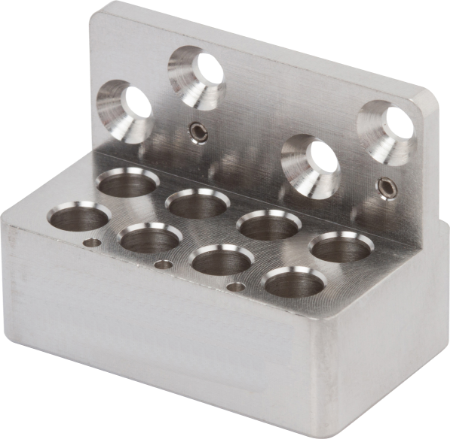

Артикул:
SF9321-60013
Family VITA 67
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Mounting Type Snap-in
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Withdrawal Force 1.5 lbs
Insertion Force 2.5 lbs (per contact)
Mating Cycles 500

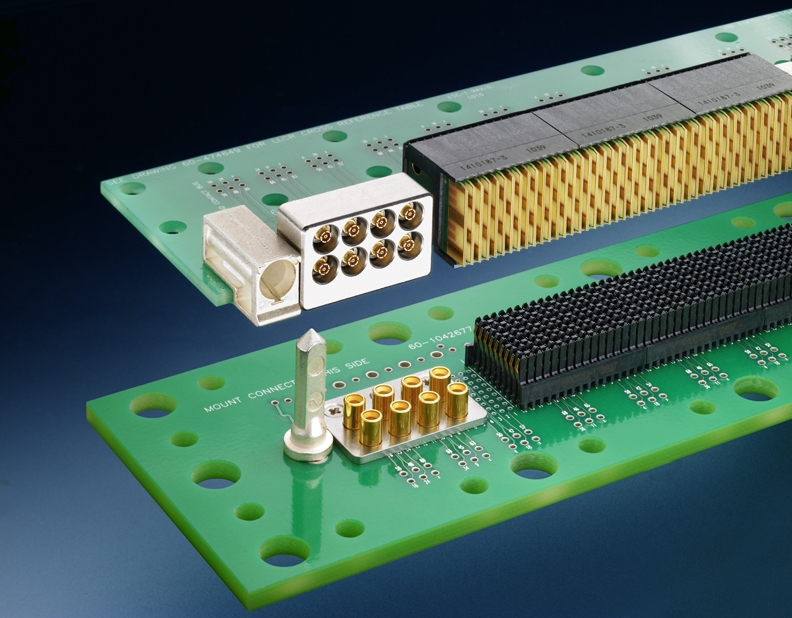

Backplane (Объединительная плата)
Environmental
Temperature Rating -65°C to +165°C
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Mounting Type Snap-in
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Withdrawal Force 1.5 lbs
Insertion Force 2.5 lbs (per contact)
Mating Cycles 500
Backplane (Объединительная плата)
Environmental
Temperature Rating -65°C to +165°C
Документы
SF9321-60013_PDD
96,6 кб
